Split heat pump with DWH tank included - Wellea WT

Characteristics products

RT 2012

Remote control lock

Domestic hot water

Floor heating

High-temperature radiator

Low-temperature radiator

Boiler replacement

Boiler back-up

CEE

Ma Prime Renov' (only in France)

Cooling
Unités intérieures		AW-YHPSA04-H91	AW-YHPSA06-H91	AW-YHPSA08-H91	AW-YHPSA10-H91	AW-YHPSA12-H91	AW-YHPSA14-H91	AW-YHPSA16-H91	AW-YHPSA12-H93	AW-YHPSA14-H93	AW-YHPSA16-H93
Unités extérieures 1 ~230V - 50Hz		—	—	—	—	—	—	—	—	—	—
Unités extérieures 3 ~400V - 50Hz - N		—	—	—	—	—	—	—	—	—	—
Cooling::Air 35°C - Water ind. 12°C /out. +7°C - Heating capacity	kW	4.70	7.00	7.40	8.20	11.60	12.70	14.00	11.60	12.70	14.00
Cooling::Air 35°C - Water ind. 12°C /out. +7°C - Rated power input	kW	1.36	2.33	2.19	2.48	4.22	4.98	5.71	4.22	4.98	5.71
Cooling::Air 35°C - Water ind. 12°C /out. +7°C - EER		3.45	3.00	3.38	3.30	2.75	2.55	2.45	2.75	2.55	2.45
Cooling::Air 35°C - Water ind. 23°C /out. +18°C - Heating capacity	kW	4.50	6.55	8.40	10.00	12.00	13.50	14.90	12.00	13.50	14.90
Cooling::Air 35°C - Water ind. 23°C /out. +18°C - Rated power input	kW	0.81	1.34	1.66	2.08	3.00	3.75	4.38	3.00	3.75	4.38
Cooling::Air 35°C - Water ind. 23°C /out. +18°C - EER		5.55	4.90	5.05	4.80	4.00	3.60	3.40	4.00	3.60	3.40
Heating
Heating::Air+7°C - Water 30/35°C - Heating capacity	kW	4.25	6.20	8.30	10.00	12.10	14.50	16.00	12.10	14.50	16.00
Heating::Air+7°C - Water 30/35°C - Rated power input	kW	0.82	1.24	1.60	2.00	2.44	3.09	3.56	2.44	3.09	3.56
Heating::Air+7°C - Water 30/35°C - COP		5.20	5.00	5.20	5.00	4.95	4.70	4.50	4.95	4.70	4.50
Heating::Air-7°C - Water 30/35°C - Heating capacity	kW	4.80	6.10	7.10	8.25	10.00	12.00	13.30	10.00	12.00	13.30
Heating::Air-7°C - Water 30/35°C - Rated power input	kW	1.52	2.00	2.18	2.62	3.33	4.29	4.93	3.33	4.29	4.93
Heating::Air-7°C - Water 30/35°C - COP		3.15	3.05	3.25	3.15	3.00	2.80	2.70	3.00	2.80	2.70
Heating::Air-7°C - Water 47/55°C - Heating capacity	kW	4.40	6.00	7.50	9.50	12.00	13.80	16.00	12.00	13.80	16.00
Heating::Air-7°C - Water 47/55°C - Rated power input	kW	1.49	2.00	2.36	3.06	3.87	4.60	5.52	3.87	4.60	5.52
Heating::Air-7°C - Water 47/55°C - COP		2.95	3.00	3.18	3.10	3.10	3.00	2.90	3.10	3.00	2.90
Heating::Air+7°C - Water 47/55°C - Heating capacity	kW	4.00	5.15	6.15	7.05	10.60	11.30	12.60	10.60	11.30	12.60
Heating::Air+7°C - Water 47/55°C - Rated power input	kW	2.05	2.58	3.00	3.53	5.25	5.46	6.29	5.25	5.46	6.29
Heating::Air+7°C - Water 47/55°C - COP		1.95	2.00	2.05	1.97	2.02	2.01	2.00	2.02	2.01	2.00
Indoor unit
Indoor unit::Sound pressure level to 1 m (LS/MS/HS/SS)	dB(A)	30	30	30	30	30	30	30	30	32	32
Indoor unit::Sound power level (LS/MS/HS/SS)	dB(A)	42	42	42	42	42	43	43	43	43	43
Indoor unit::Outline Dimensions (WxHxD)	mm	600x600x1683	600x600x1683	600x600x1683	600x600x1683	600x600x1683	600x600x1683	600x600x1683	600x600x1683	600x600x1683	600x600x1683
Indoor unit::Net Weight	kg	140/161	140/161	157/178	157/178	159/180	159/180	159/180	159/180	159/180	159/180
Indoor unit::Phase/Voltage/Frequency		1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz
Indoor unit::Max. current	A	14.30	14.30	14.30	14.30	14.30	14.30	14.30	14.30	14.30	14.30
Indoor unit::Tank - Capacity	l	190	190	240	240	240	240	240	240	240	240
Indoor unit::Tank - Electric heater	kW	3	3	3	3	3	3	3	3	3	3
Indoor unit::Reference		AW-YHPSA04-H91;AW-YHPSA06-H91	AW-YHPSA08-H91;AW-YHPSA10-H91	AW-YHPSA04-H91;AW-YHPSA06-H91	AW-YHPSA08-H91;AW-YHPSA10-H91	AW-YHPSA12-H91	AW-YHPSA14-H91	AW-YHPSA16-H91	AW-YHPSA12-H93	AW-YHPSA14-H93	AW-YHPSA16-H93
Indoor unit::Part number		7SP130001	7SP130001	7SP130002	7SP130002	7SP130003	7SP130003	7SP130003	7SP130003	7SP130003	7SP130003
Outdoor unit::Airflow (LS/MS/HS/SS)	m³/h	2770	2770	4030	4030	4060	4060	4650	4060	4060	4650
Outdoor unit::Dimensions (WxHxD)	mm	1008x712x426	1008x712x426	1118x865x523	1118x865x523	1118x865x523	1118x865x523	1118x865x523	1118x865x523	1118x865x523	1118x865x523
Outdoor unit::Net Weight	kg	58/64	58/64	77/88	77/88	96/110	96/110	96/110	112/125	112/125	112/125
Code		7HP061065	7HP061066	7HP061067	7HP061068	7HP061069	7HP061070	7HP061071	7HP061072	7HP061073	7HP061074
Energy label		—	—	—	—	—	—	—	—	—	—
Alimentation
Power supply::Phase/Voltage/Frequency		1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	1P/220-240V/50Hz	3P/380-415V/50Hz	3P/380-415V/50Hz	3P/380-415V/50Hz
Power supply::Max. current	A	14	14	17	17	25	26	27	10	11	12
Others
Performances::Energy label - Water outlet to 35°C	classe	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++
Performances::Energy label - Water outlet to 55°C	classe	A++	A++	A++	A++	A++	A++	A++	A++	A++	A++
Performances::Seasonal efficiency - Water outlet to 35°C	%	191	195	205	205	189	186	182	189	186	182
Performances::Seasonal efficiency - Water outlet to 55°C	%	130	138	132	137	135	136	133	135	136	133
Performances::SCOP (average climate) - Water outlet to 35°C		4.85	4.95	5.21	5.19	4.81	4.72	4.62	4.81	4.72	4.62
Performances::SCOP (average climate) - Water outlet to 55°C		3.31	3.52	3.36	3.49	3.45	3.47	3.41	3.45	3.47	3.41
Performances::Sound level	dB(A)	56	58	59	60	64	65	68	64	65	68
Performances::Sound pressure level (1m)	dB(A)	44	45	46	49	50	51	55	50	51	55
Actions		Request a quote	Request a quote	Request a quote	Request a quote	Request a quote	Request a quote	Request a quote	Request a quote	Request a quote	Request a quote

Accessories and options
Bizone Kit 2Z2T

Réf. : 7ACEL1882

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
This module makes it simple to manage 2 zones with 2 different temperatures (e.g.: floor heating & radiator).
All the components are pre-wired, you just have to plug them in.
1 hydraulic module:
- 2 condensate pumps
- 1 regulator
- 2 thermostats (radio)
- 1 outdoor temperature sensor (radio)
- 1 antenna (for radio connection)
Thermostat functions:
- Temperature change (5 C to 37 C)
- Mode switch (heating / air conditioning)
- Weekly programming
- Holiday mode

Hydraulic compensator

Réf. : 7ACFH0854

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
To be use with the Bizone Kit.
If you don’t have a buffer tank you can use this compensator. Easy to pair with our
Bizone Kit.
14 kW ∆T 5°C – 28 kW ∆T 10°C

3 ways valve

Réf. : 7ACFH0855

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
3 ways valve for heating and DHW

Magnetic dirt separator 1’’

Réf. : 7ACFH0856

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Dirt separator, swiveling, with magnetic ring

Antifreeze valve MM 1"

Réf. : 7ACFH0857

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Ready to install
Thermostatic valve
Automatic opening (+ 3 ° C) and closing (+ 4 ° C) (+/- 1 ° C)

Automatic air vent 1"

Réf. : 7ACFH0862

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Continuous degassing of air present in the hydraulic circuit
Automatic operation
Swivelling: horizontal or vertical mounting

Mix bottle 25 L

Réf. : 7ACFH0859

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Insulated bottle, reversible: heating and cooling
ErP class: C
Usable volume: 25 L
Wall installation

Mix bottle 50 L

Réf. : 7ACFH0858

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Insulated bottle, reversible: heating and cooling
ErP class: C
Usable volume: 51 L
Wall installation

Mix bottle 100 L

Réf. : 7ACFH0860

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Insulated bottle, reversible: heating and cooling
ErP class: C
Usable volume: 95 L
Floor installation

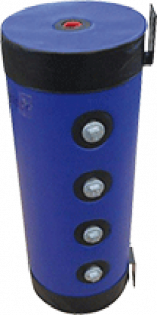

Mix bottle 200 L

Réf. : 7ACFH0861

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Insulated bottle, reversible: heating and cooling
ErP class: C
Usable volume: 195 L
Floor installation

Safety valve 10B 20X27

Réf. : 7ACFH0863

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Installation power: 46 kW
Graduated adjustment scale: 0.1 to 0.6 bar differential

Expansion vessel 12 L

Réf. : 7ACFH0864

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
CE standard vessel for heating and cooling circuit
Capacity: 12 L
Pre-inflation: 1 bar

Expansion vessel 18 L

Réf. : 7ACFH0865

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
CE standard vessel for heating and cooling circuit
Capacity: 18 L
Pre-inflation: 1 bar

Wall support for expansion vassel

Réf. : 7ACFH0866

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Arm, vessel bracket, equipped with:
- quick-release coupling for vessel
- PR2 air bleed
- NC valve with pressure gauge

Backflow preventer 1/2

Réf. : 7ACFH0867

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Non-controllable reduced pressure zone backflow preventer
NF

Condensate pump EVOSTA 2 - 4 to 7 mH2O 180 mm

Réf. : 7ACFH0868

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Low consumption electronic circulator (EEI <= 0.18)
For heating and air conditioning
With limescale protection during commissioning
5 year warranty
Flowrate: 0.4 to 3.6 m3 / h
Manometric head: 4 to 6.9 mWp
3 operating curves each with 3 speeds:
- Proportional differential pressure
- Constant differential pressure
- Constant speed
Protection class: IP X5

Axial thermometer 100 immersion 200

Réf. : 7ACFH0869

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Axial thermometer
Display 0/120°

Shock absorder (support)

Réf. : 7ACTL0510

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Helps reduce the transmission of vibrations.
Length: 1 000mm

Line electrical heater - 3kW

Réf. : 7ACFH0822

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Provides additional heating when the heating demand is greater than the heat pump capacity

Remote control RCW29

Réf. : 7ACEL1896

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
On/Off control, additional heating
Operating mode: cooling / heating / automatic
DHW parameters: forced mode / holiday / anti-legionella / DHW pump
Temperature parameter: water outlet, set temperature
Timer: 12/24h
On/Off timer, daily / weekly
Display of different temperatures
Probe values display
Fault codes
Maintenance mode

Temperature sensor

Réf. : 1PR070230

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Temperature sensor + cable (10m)

Cable extension (mixing tank)

Réf. : 7ACFH0870

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Connection between temperature sensor and electronic board for mixing tank probe

Cable extension (solar)

Réf. : 7ACFH0871

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Connection between temperature sensor and electronic board for solar probe

DHW electric heater control panel

Réf. : 7ACEL1892

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
Control the DHW electric heater with the heat pump

DHW TANK 200L

Réf. : 7ACFH0872

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
DHW tank 200L

DHW TANK 200S

Réf. : 7ACFH0876

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
DHW tank 200S

DHW TANK 300L

Réf. : 7ACFH0873

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
DHW tank 300L

DHW TANK 300S

Réf. : 7ACFH0875

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
DHW tank 300S

DHW TANK 500L

Réf. : 7ACFH0874

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
DHW tank 500L

DHW TANK 500S

Réf. : 7ACFH0877

Appareils : WELLEA WT/WELLEA Split/WELLEA Monobloc/WELLEA Monobloc DF
DHW tank 500S
